How to Replace an Alternator in a Volvo 240

by Susan DeFeo
itstillruns article image
Susan DeFeo

The function of an alternator is to charge the car battery and to generate power to the electrical system when the engine is running. Replacing the alternator yourself on a Volvo 240 is a relatively easy job which can save you substantial labor costs.

Alternator Removal

Step 1

itstillruns article image

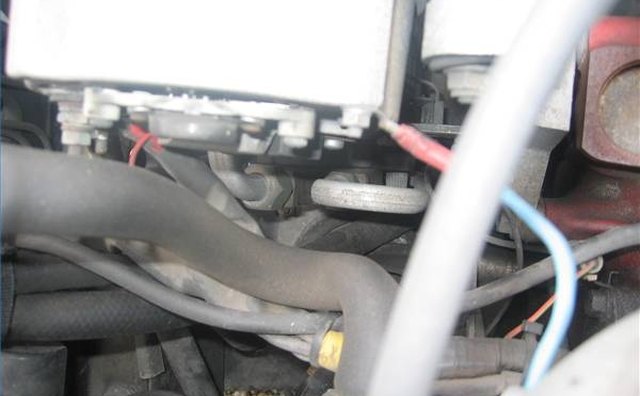

Working on a cold engine, disconnect the negative battery cable, then disconnect the electrical leads to the alternator.

Step 2

Loosen the alternator adjusting bolts and position the alternator so that the drive belt may be removed.

itstillruns article image

Take out the alternator adjusting bolts and mounting bolts. Remove the alternator.

Alternator Replacement

Step 1

Reverse the removal steps above by first positioning the new alternator in place.

Step 2

Reinstall the mounting and adjusting bolts, but do not tighten completely.

Step 3

itstillruns article image

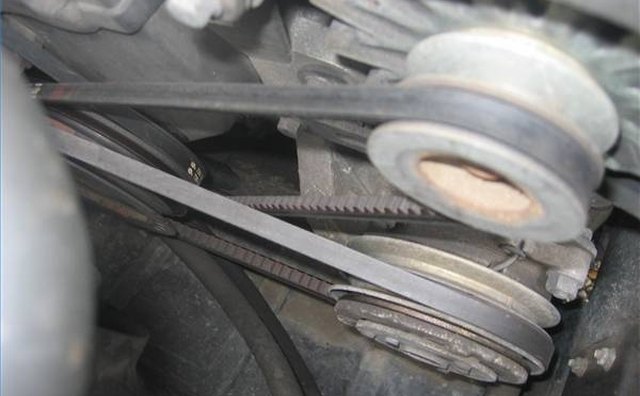

Replace the drive belt, making sure to adjust the tension correctly. You should be able to depress the drive belt 5 to10 mm midway between the pulleys. Once the tension is correct, tighten the bolts.

Step 4

itstillruns article image

Reconnect the electrical leads to the alternator.

Reconnect the negative cable to the battery.
