How to install a piston into an engine

by Editorial Team
itstillruns article image

I will show you how easy it is to install a piston into a cylinder and how to do it properly to prevent premature engine failure.

Step 1

itstillruns article image

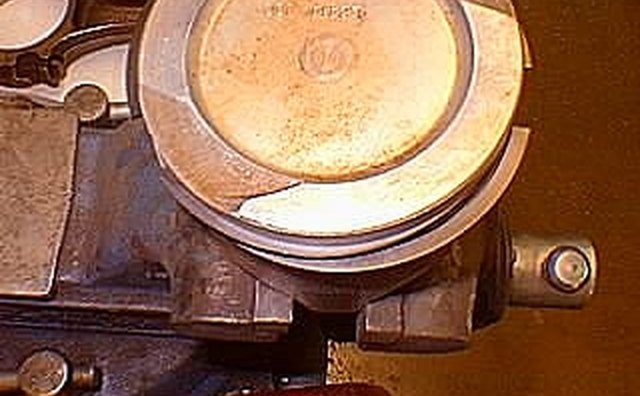

Stagger the rings 180 degrees with the openings on the ends where the wrist pins are located. This will minimize blow by of compression gasses.

Step 2

itstillruns article image

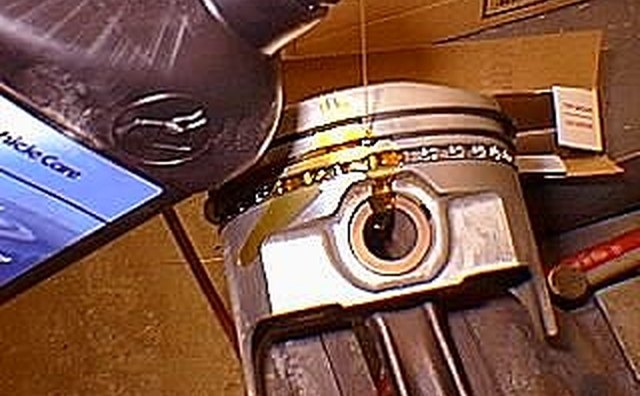

Oil up the piston really good, make sure oil gets around the rings and on the sides of the pistons. Lubrication is critical. I used assembly lube.

Step 3

itstillruns article image

Lubricate the cylinder walls

Step 4

itstillruns article image

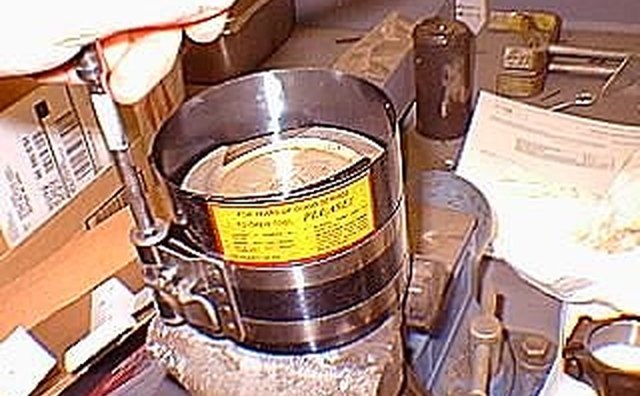

Install piston ring compressor and tighten to pull rings back into piston. Install the connecting rod bearings and lubricate. Rotate the crankshaft to the lowest part of it's stroke. This will allow you to put on the connecting rods caps and tighten the bolts/or nuts.

Step 5

itstillruns article image

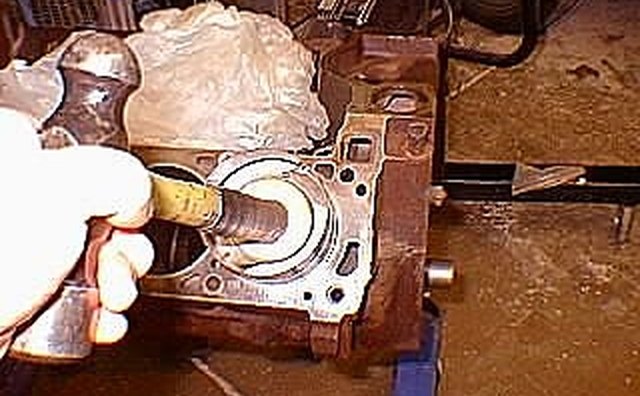

Insert piston into the cylinder that it corresponds to, this is #1 piston and there is an arrow to indicate the front of the engine. Using the handle of a hammer, tap and push the piston downward towards the crankshaft. Using the other hand to guide the connecting rod around the journal of the crankshaft. You really don't want to scratch the surface of the crankshaft. Install the connecting rod caps and torque to specification and you are done!
