How to Change a Universal Joint on a Chevy Blazer

by K.K. Lowell

Changing a driveshaft universal joint in a Chevy Blazer is a job that a person handy with tools can do quite easily. There are no special tools required, although a universal joint press is strongly recommended and can be rented at many automotive parts stores.

Step 1

itstillruns article image

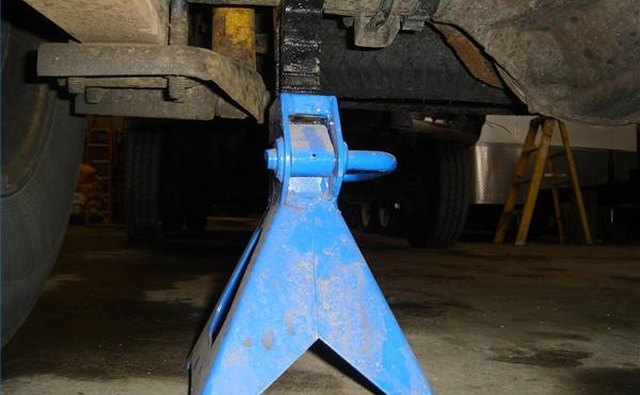

Using a floor jack, raise the Blazer high enough to allow easy access to the driveshaft. Securely support the vehicle on jack stands before crawling under it.

Step 2

itstillruns article image

Remove the four 11mm bolts holding the rear yoke of the driveshaft to the differential.

Step 3

itstillruns article image

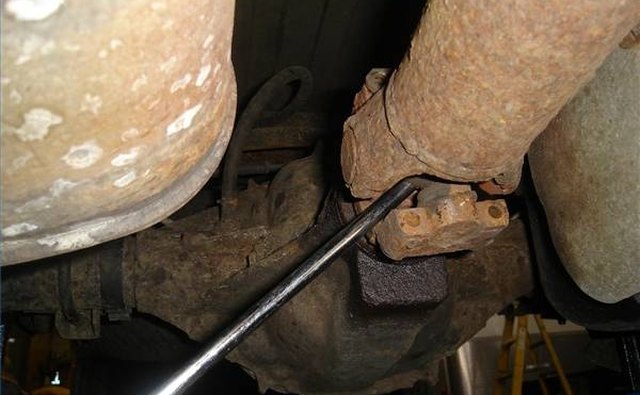

Place the pry bar between the universal joint and the differential yoke. Pry the driveshaft out of the differential yoke if it does not easily come out.

Step 4

Pull the driveshaft toward the rear of the vehicle to take it out of the transmission.

Step 5

itstillruns article image

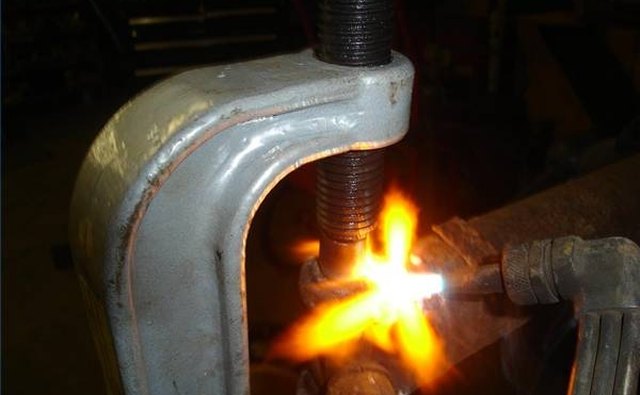

Melt the nylon locks out of the joint if you are replacing an original equipment universal joint. Any joint that has been previously replaced will have lock rings installed so this step is not necessary. These nylon locks are located in the ears of the yoke, just behind the area where the bearing caps are pressed in. They are visible as small white plastic dots, one on each side of the ear.

Step 6

itstillruns article image

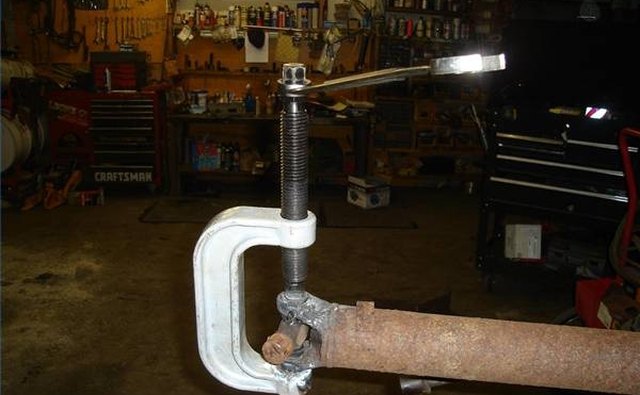

Clamp the universal joint in the universal joint press and push it out of the yoke. The press pushes the cap out when you turn the driving screw in a clockwise direction. Be sure to line up the end of the press which has the hole to allow the bearing cap to enter it without obstruction.

Step 7

Remove the bearing cap on the side of the joint which was pressed out of the yoke. The bearing cap simply pulls off the joint post. Turn the the universal joint press over and push the joint out of the other side of the yoke.

Step 8

Remove the second bearing cap when it is exposed. Next, remove the tool from the driveshaft and take the universal joint out of the middle of the yoke.

Step 9

Take the bearing caps off one cross of the new universal joint. Being very careful to avoid contacting the yoke with the universal joint, place one of the capless posts of the joint through the yoke to the outside. Put the bearing cap back on.

Step 10

Using the universal joint tool, press the bearing cap back into the yoke. Push it far enough through to allow you to install the bearing cap back on the opposing post.

Step 11

Install a lock ring on the bearing cap you pushed through the yoke. The locks snap into the groove on the inner end of the bearing cap.

Step 12

Press the joint into the yoke until the lock contacts the inside of the opposing ear and you can install the lock on the second bearing cap.

Step 13

Install the supplied grease fitting in the joint. Some replacement joints do not have a grease fitting, so this step may not be necessary.

Step 14

Slide the driveshaft back into the transmission.

Step 15

Insert the rear of the driveshaft into the differential yoke. Be certain to center the bearing caps in the yoke. This should be a fairly tight fit. You will likely need to turn the differential yoke by hand until the yoke and the driveshaft line up properly.

Step 16

Use a drop of threadlocker, such as Locktite 242, on each of the 11mm bolts. Thread the bolts into the differential yoke and tighten uniformly.

Step 17

Recheck that the bearing caps are centered in the differential yoke.

Step 18

Remove the jack stands and test drive the vehicle.
